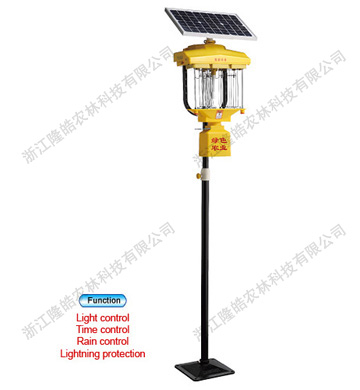

TDB-1107

Solar-Radial Pest Killing Lamp


Solar panel
  Voltage 10V   Power 15W
Battery
  Voltage 6V/12V  Capacity 12AH
Solar controller
  Voltage 6V/12V  Current 5A
Luring lamp T5
  Voltage 6V/12V  Power 5W/8W
Can match lighting light source (from)
  LED   Power 3W

Transformer

  Voltage 6V Current300mA DC4200V

Electrical ballast

  Voltage 6V Power6W Current420mA
Grid area

  0.189㎡

Packing volume

  433*340*630mm(lift)
Weight

  14.5kg

Size of lamp adjustable stand
  Φ42*1000(mm)  Φ48*1000(mm)
Packing volume of lamp adjustable stand
  1100*48*48(mm)
Weight of lamp adjustable stand

  3.3kg

Trap area

  20-40亩

Whole lamp volume

  435*340*2100mm(lift)

The light weight (seal)

  17.8kg 备注:不同配置 不同重量

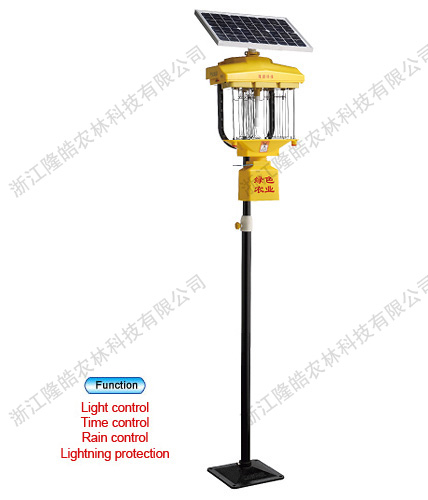

TDB-1108

Solar-Radial Pest Killing Lamp

Solar panel
  Voltage 10V   Power 15W
Battery
  Voltage 6V   Capacity 12AH
Solar controller
  Voltage 6V   Current 5A
Luring lamp T5
  Voltage 6V   Power 5W
Can match lighting light source (from)
  LED   Power 3W

Transformer

  Voltage 6V Current300mA DC4200V

Electrical ballast

  Voltage 6V Power6W Current380mA
Grid area

  0.097㎡

Packing volume

  1230*42*42(mm)
Weight

  7.15kg

Size of lamp adjustable stand
  Φ32*1200(mm)  Φ38*1200(mm)
Packing volume of lamp adjustable stand
  1230*42*42(mm)
Weight of lamp adjustable stand

  2.7kg

Trap area

  10-30亩

Whole lamp volume

  400*380*2500mm(lift)

The light weight (seal)

  9.85kg
