TDB-2013

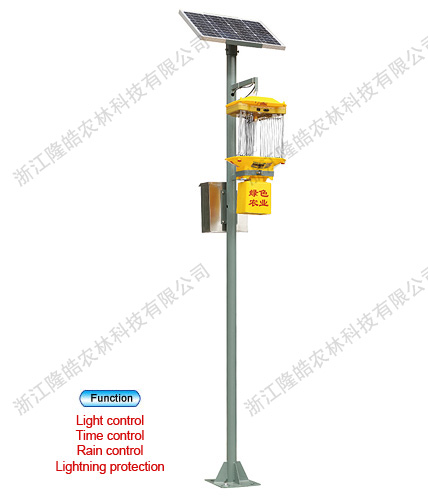

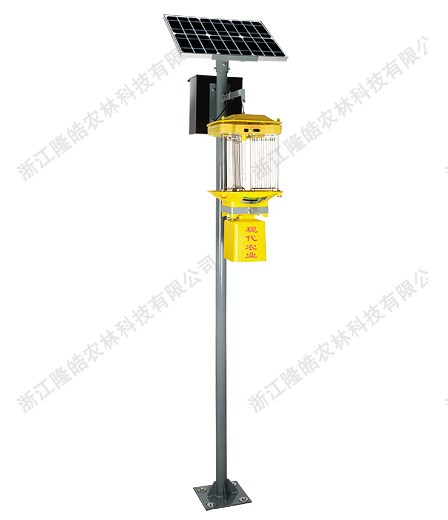

Solar-Radial Pest Killing Lamp
|
Solar panel
|
Voltage18V Power30W
|
|
Battery
|
Voltage12V Capacity22AH
|
|
Solar controller
|
Voltage12V Current10A
|
|
Luring lamp T5
|
Voltage12V Power8W
|
|
Transformer
|
Voltage12V Current40mA AC5000V
|
|
Electrical ballast
|
Voltage12V Power18W Current700mA
|
|
Contact traps area
|
0.18m2
|
|
Lamp-posts (Galvanized)
|
Φ73mm heigh3000mm thickness 2.5mm
|
|
Weight
|
47kg
|
|
Lamp packaging volume
|
0*0*0mm weight0kg
|
|
Battery, electric box volume weight
|
0*0*0mm weight0kg
|
|
The packaging volume and weight
|
Φ73mm height3000mm weight24kg
|
|
|
|
TDB-2013

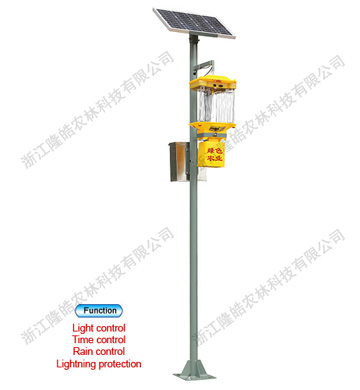

Solar-Radial Pest Killing Lamp
|
Solar panel
|
Voltage 18V Power 25W/30W
|
|
Battery
|
Voltage 12V Capacity 17AH/22AH
|
|
Solar controller
|
Voltage 12V Current 10A
|
|
Luring lamp T5
|
Voltage 12V Power 8W
|
|
|
Voltage 12V Current450mA DC5000V
|
|
|
Voltage 12V
Power 18W Current 700mA
|
|
Grid area
|
0.47㎡
|
|
Light pole (galvanizing)
|
Φ38x1200mm Φ42x1200mm
|
|
Trap area
|
20-40亩
|
|
The light weight
(Four unity)
|
31.03kg 备注：不同配置 不同重量
|
|
|
|
